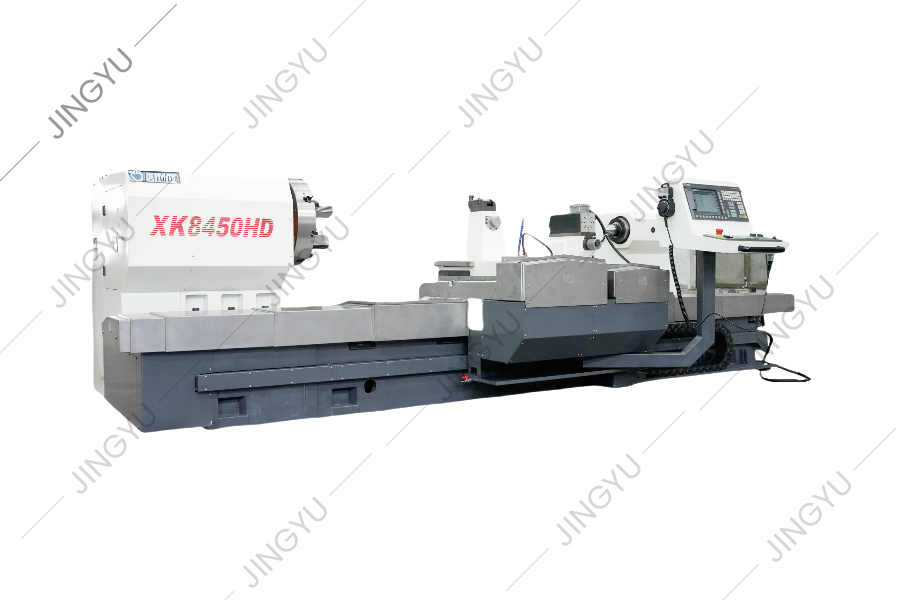

Full Automatic CNC Roll Milling Machine

It is mainly used for rotary fly milling of various transverse rib grooves of rollers and engraving and milling of characters, patterns, etc.
Equipped with a 6-axis Siemens high-end CNC system, six servo drives control the feed axes respectively. The flying cutter head and engraving and milling head are configured and controlled independently (no mechanical or electrical conversion is required). After the initial tool setting is completed, the flying cutter milling of transverse rib grooves and the engraving and milling of characters and patterns can be completed in one go.
Cutting method: "flying knife" cutting and processing of transverse rib grooves + milling head to engrave letters, numbers, and trademarks
Workpiece material: It can process ordinary chilled cast iron rolls, high-nickel-chromium, medium-nickel-chromium composite rolls, high-speed steel rolls, and tungsten carbide roll rings. 1. This series of machine tools all adopt an integral 4-rail bed structure, and the reference guide rails adopt integral super-audio quenching, which ensures the high rigidity, high precision, and stability of the entire machine. The machine tool guide rails are protected by stainless steel guards, which effectively ensures the service life of the machine tool guide rails.
2. The transverse moving guide rail of the flying cutter milling head component is supported by high-precision heavy-duty linear cylindrical rolling guide rails. Ensure the high precision and high rigidity requirements of feed motion during flying knife machining.
3. The flying knife shaft transmission chain uses 6-level precision grinding gears to ensure that the tool trajectory executes the program instruction requirements of the CNC system, and eliminates hidden problems such as groove mismatch and broken blades caused by poor precision and rigidity of the transmission chain. defect. Its performance is particularly highlighted in the processing of small-sized tungsten carbide roller rings and high-hardness large-sized rolls.
4. The flying knife spindle uses a large-diameter H40 spindle end, which can meet the requirements for processing 60mm contour ribs.

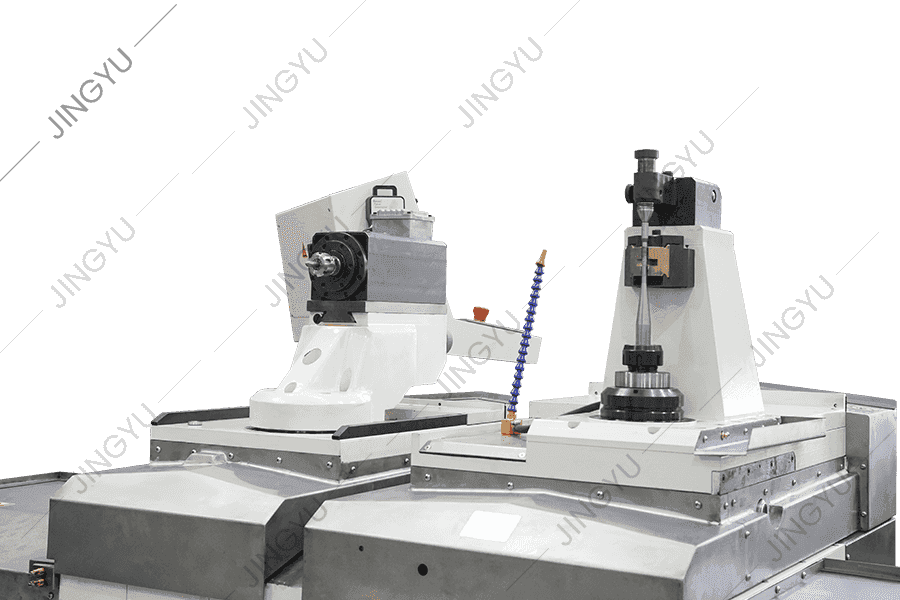

5. The rotary flying milling head and the swing engraving and milling head are configured and controlled independently (no mechanical or electrical conversion is required), and there is no interference with the functional components of the machine tool. The full stroke processing of the roll can be achieved with one clamping of the roll.
After completing the initial tool setting, the automatic one-step process of transverse rib groove flying knife milling and character and pattern engraving and milling can be completed at one time.
6. The longitudinal and transverse linear motion axes of the machine tool are driven by high-precision ball screws to avoid the inaccuracy of gear and rack transmission. Under the automatic control of the CNC system, automatic movement and precise positioning from one hole pattern to the next can be achieved.
7. The workpiece spindle transmission adopts a gap-free connection method, which is maintenance-free, ensuring the transmission accuracy to the extent and controlling the backlash.

Serial Number	Item	Unit	XK8450HD
1	Processable items		Roll rib groove processing (crescent groove, contour rib, etc.) + marking engraving and milling
2	Workpiece material/type		Ordinary materials, high-speed steel rollers, composite rollers, tungsten carbide roller rings, etc.
3	Applicable thread specifications	mm	Φ5~φ50
4	Maximum diameter of the workpiece	mm	Φ650
5	Minimum diameter of the workpiece	mm	φ100
6	The maximum length of the workpiece	mm	2500
7	Cutting method/function		Milling head swing engraving and milling + "flying knife" cutting rib groove
8	Flying knife transmission method		Pure 6-stage gear transmission
9	Swing head transmission method		Variable lead worm gear
10	Machine tool guide rail form		Overall 4 guide rails (bed saddle 2 + tailstock 2)
11	Machine tool guide rail width		900mm(stainless steel full protection)

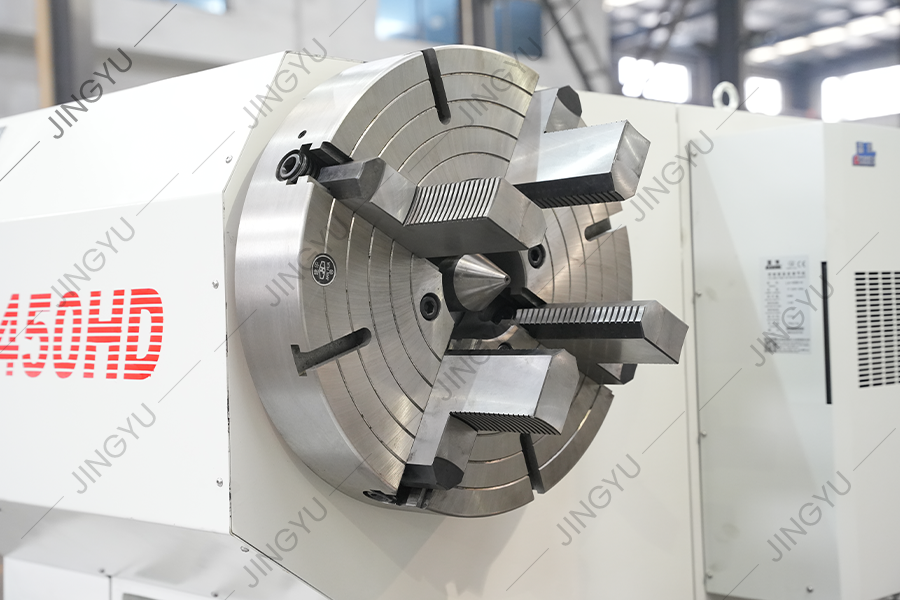

12	Headstock spindle taper hole		Mohs 6#
13	Rotary spindle drive	rpm /kw	0~600(Flying Knife)  / 3.5 kw
14	Engraving and milling head spindle drive	rpm /kw	2000~8000(milling head)  /2.5 kw
15	Tailstock sleeve diameter	mm	180
16	Tailstock spindle taper hole		Mohs 6#
